pixelmanDriver Class Reference

pixelman asyn driver More...

#include <pixelmanDriver.h>

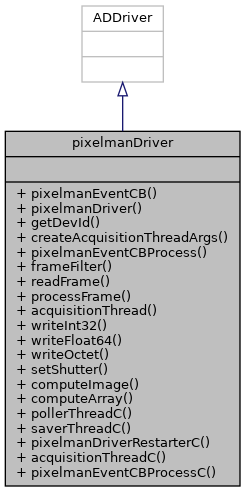

Inheritance diagram for pixelmanDriver:

Classes
struct	AcquisitionThreadArgs

Public Types
enum	PixelmanAcqType { ACQ_FRAME =0x1, ACQ_INTEGRAL =0x2, ACQ_ABORT =0x3 }
	Acquisition type to request. More...
enum	CameraStatus { STATUS_IDLE =0x0, STATUS_ACQUIRING =0x1, STATUS_SAVING =0x2 }

Public Member Functions
virtual void	setShutter (int open)
	Controls the shutter.
int	computeImage (epicsUInt32 *value, u32 width, u32 height)
	Computes the new image data.

Detailed Description

pixelman asyn driver

Definition at line 10 of file pixelmanDriver.h.

Member Enumeration Documentation

enum pixelmanDriver::CameraStatus

Enumerator
STATUS_IDLE	camera not taking data
STATUS_ACQUIRING	camera taking data
STATUS_SAVING	camera writing to file

Definition at line 79 of file pixelmanDriver.h.

enum pixelmanDriver::PixelmanAcqType

Acquisition type to request.

Enumerator
ACQ_FRAME	start frame acquisition
ACQ_INTEGRAL	start integral acquisition
ACQ_ABORT	abort acquisition

Definition at line 75 of file pixelmanDriver.h.

---

The documentation for this class was generated from the following files:

• pixelmanApp/src/pixelmanDriver.h
• pixelmanApp/src/pixelmanDriver.cpp
